3-D Laser Scanning Using TRIMBLE’s X9

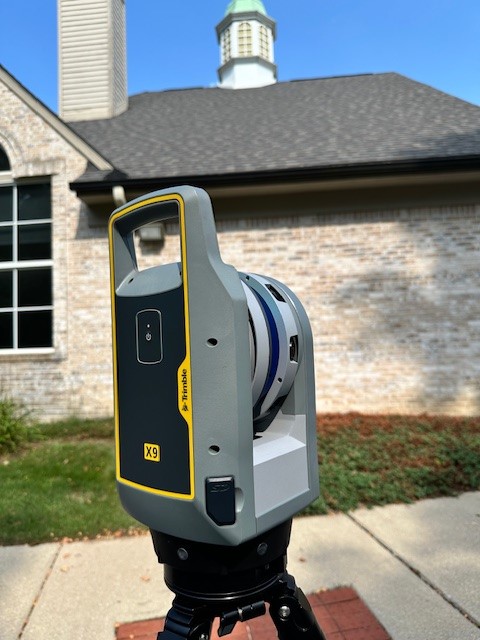

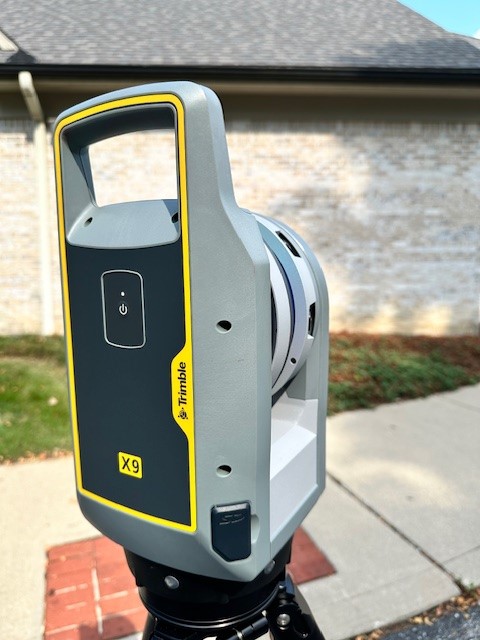

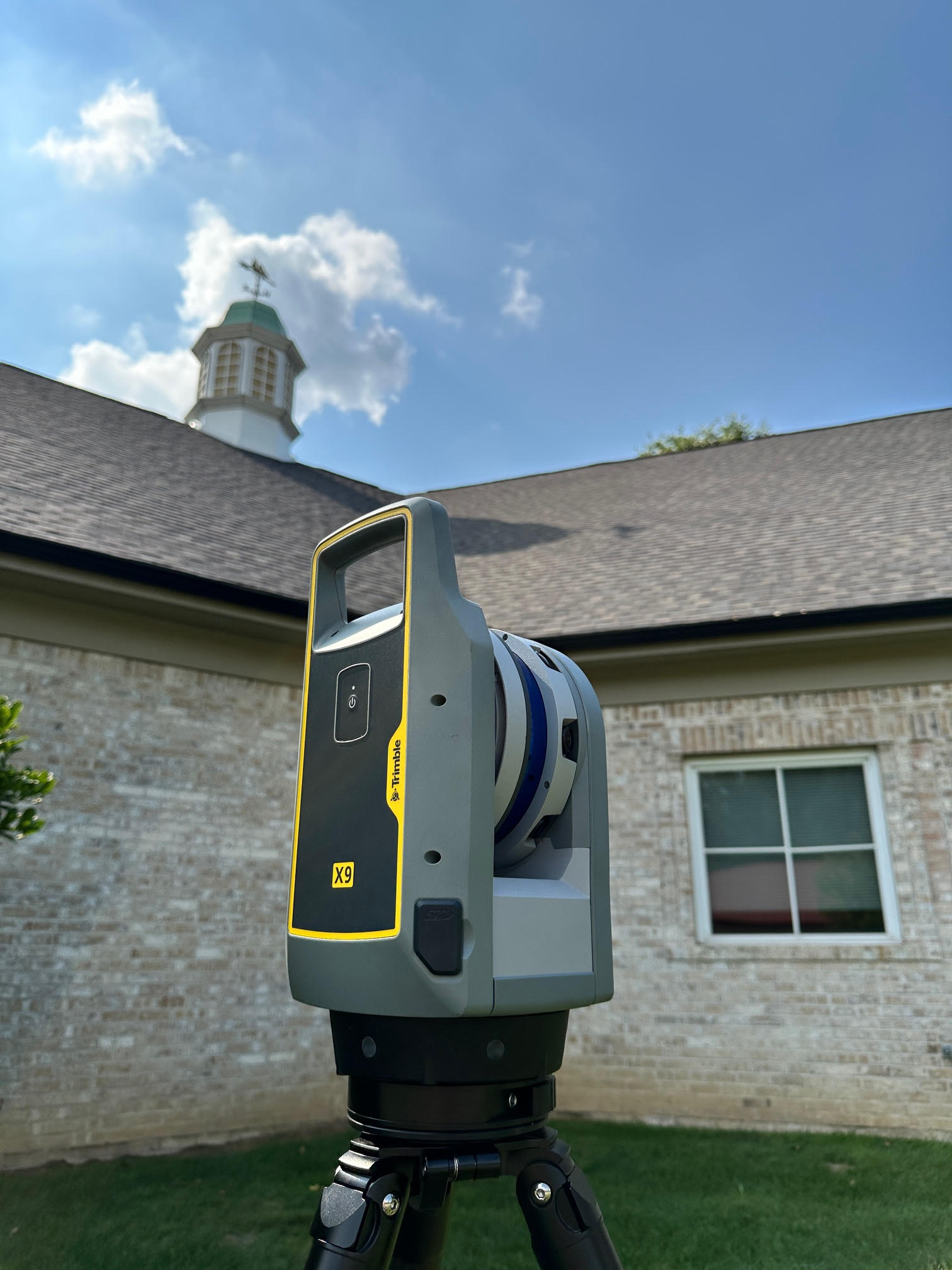

  Trimble X9 3D Laser Scanner – Precision Scanning for Industrial and Commercial Spaces
We are excited to announce the addition of the Trimble X9 3D Laser Scanner to our suite of advanced engineering tools. This cutting-edge technology significantly enhances our ability to capture high-resolution, accurate spatial data for both interior and exterior environments, including industrial plants, commercial buildings, and office spaces.
The Trimble X9 provides:
  • Highly Accurate 3D Laser Scanning: The scanner captures millions of data points in just minutes, generating a detailed point cloud that represents the true spatial conditions of any environment. Scanner is accurate with a range of +/-2mm and a 3D point accuracy of approximately 2.3 mm at 20m.  It has a 150 m range for high-precision, industrial grade usage indoor or outdoors.
  • Versatile Scanning Capabilities: Whether it’s the complex piping and equipment layouts in a processing facility or the architectural details of an office interior, the Trimble X9 excels in both outdoor and indoor settings, regardless of lighting conditions.
  • Data Integration: The point cloud data captured by the X9 can be converted into AutoCAD or Revit files, allowing our design and drafting teams to work with precise, as-built models for planning, retrofits, expansions, or compliance documentation.
  • Digital Twin Creation: We can create a digital replica of your manufacturing line or offices using CAD models for planning and experimentation with various alternatives.
  • Increased Efficiency and Safety: Remote scanning reduces the need for manual measurements in potentially hazardous environments, improving both data collection speed and on-site safety.
With the Trimble X9, we can deliver accurate documentation, quick project turnaround times, and improved design accuracy. This investment underscores our commitment to leveraging 3D scanning technology to support smart engineering decisions and better project outcomes.  Call us at (419) 861-3000 to quote your next scanning project.
